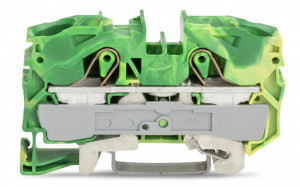

Clema sir Wago de trecere cu 3 conductori; 2,5 mm²,verde/galben ,TOPJOB: 2202-1307
23,39 RON
(TVA inclus)
Costurile de livrare nu sunt incluse.
Cum te putem ajuta?
Descriere
| Connection points | 3 |
| Total number of potentials | 1 |
| Number of levels | 1 |
| Number of jumper slots | 2 |
Connection 1
| Connection technology | Push-in CAGE CLAMP® |
| Actuation type | Push-button |
| Connectable conductor materials | Copper |
| Nominal cross-section | 2,5 mm² |
| Solid conductor | 0,25 … 4 mm² / 22 … 12 AWG |
| Solid conductor; push-in termination | 0,75 … 4 mm² / 18 … 12 AWG |
| Fine-stranded conductor | 0,25 … 4 mm² / 22 … 12 AWG |
| Fine-stranded conductor; with insulated ferrule | 0,25 … 2,5 mm² / 22 … 14 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 1 … 2,5 mm² / 18 … 14 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 10 … 12 mm / 0.39 … 0.47 inci |
| Wiring direction | Front-entry wiring |
