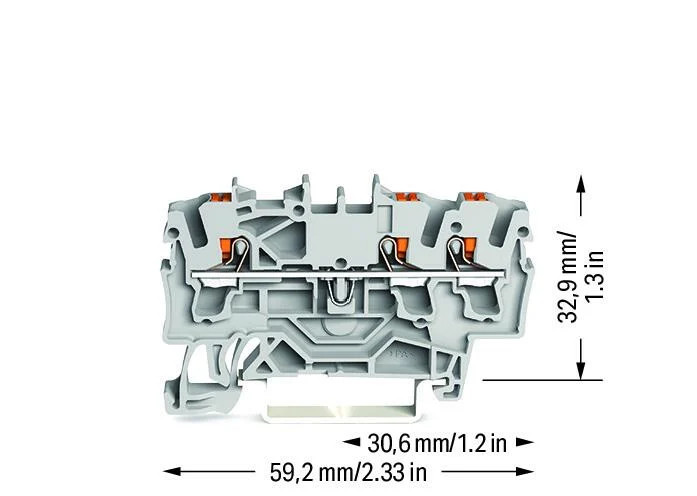

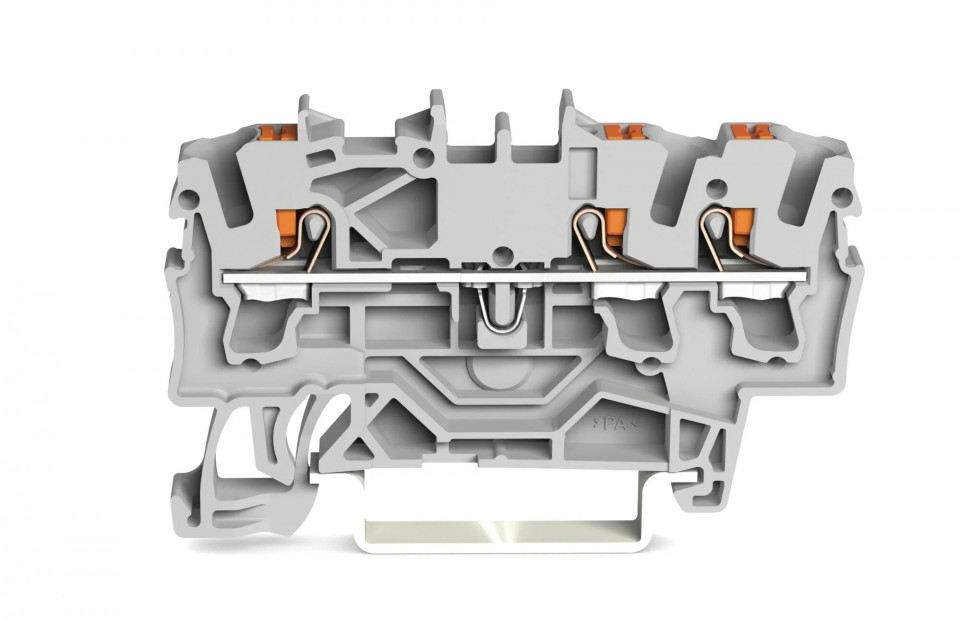

Clema sir Wago de trecere cu 3 conductori; 2,5 mm²,gri ,TOPJOB : 2202-1301
7,00 RON
/ buc.
(TVA inclus)
Costurile de livrare nu sunt incluse.
Cum te putem ajuta?
Descriere
| Ratings per | IEC/EN 60947-7-1 |
| Nominal voltage (III/3) | 800V |
| Rated impulse voltage (III/3) | 8kV |
| Rated current | 24A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Ratings per IEC/EN 2
| Rated current 2 | 32A |
Ratings per UL
| Approvals per | UL 1059 |
| Rated voltage UL (Use Group B) | 600V |
| Rated current UL (Use Group B) | 20A |
| Rated voltage UL (Use Group C) | 600V |
| Rated current UL (Use Group C) | 20A |
Ratings per CSA
| Approvals per | CSA 22.2 No 158 |
| Rated voltage CSA (Use Group B) | 600V |
| Rated current CSA (Use Group B) | 20A |
| Rated voltage CSA (Use Group C) | 600V |
| Rated current CSA (Use Group C) | 20A |
Ex information
| Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
| Ratings per | ATEX: PTB 18 ATEX 1005 U / IECEx: PTB 18.0012U (Ex eb IIC Gb) |
| Rated voltage EN (Ex e II) | 550V |
| Rated current (Ex e II) | 22A |
| Rated current (Ex e II) with jumper | 20A |
Power loss
| Power loss, per pole (potential) | 0,766W |
| Rated current IN for specified power loss | 24A |
| Resistance value for specified, current-dependent power loss | 0,001Ω |
| Connection points | 3 |
| Total number of potentials | 1 |
| Number of levels | 1 |
| Number of jumper slots | 2 |
Connection 1
| Connection technology | Push-in CAGE CLAMP® |
| Actuation type | Push-button |
| Connectable conductor materials | Copper |
| Nominal cross-section | 2,5 mm² |
| Solid conductor | 0,25 … 4 mm² / 22 … 12 AWG |
| Solid conductor; push-in termination | 0,75 … 4 mm² / 18 … 12 AWG |
| Fine-stranded conductor | 0,25 … 4 mm² / 22 … 12 AWG |
| Fine-stranded conductor; with insulated ferrule | 0,25 … 2,5 mm² / 22 … 14 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 1 … 2,5 mm² / 18 … 14 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 10 … 12 mm / 0.39 … 0.47 inci |
| Wiring direction | Front-entry wiring |
Detalii
SKU
2202-1301
