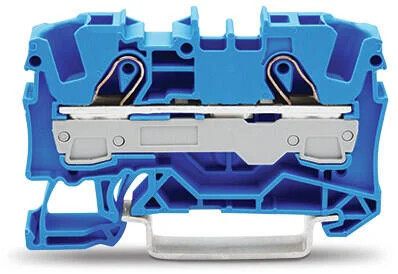

Clema sir Wago de trecere cu 2 conductori; 6mm²,albastru ,TOPJOB : 2006-1204

8,00 RON / buc. (TVA inclus)
Costurile de livrare nu sunt incluse.
Cod produs - SKU 2006-1204
Disponibil in stoc
Solicita postare in SICAP


Ratings per IEC/EN 60947-7-1
Nominal voltage (III/3) 800V
Rated impulse voltage (III/3) 8kV
Rated current 41A
Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3
Ratings per IEC/EN 2
Rated current 2 57A
Ratings per UL
Approvals per UL 1059
Rated voltage UL (Use Group B) 600V
Rated current UL (Use Group B) 50A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 50A
Ratings per CSA
Approvals per CSA 22.2 No 158
Rated voltage CSA (Use Group B) 600V
Rated current CSA (Use Group B) 50A
Rated voltage CSA (Use Group C) 600V
Rated current CSA (Use Group C) 50A
Ex information
Reference hazardous areas See application instructions in section “Knowledge and
Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Ratings per ATEX: PTB 05 ATEX 1030 U / IECEx: PTB 05.0014U (Ex eb IIC Gb)
Rated voltage EN (Ex e II) 550V
Rated current (Ex e II) 38A
Rated current (Ex e II) with jumper 33A
Power loss
Power loss, per pole (potential) 1,311W
Rated current IN for specified power loss 41A
Resistance value for specified, current-dependent power loss 0,001Ω

Connection points 2
Total number of potentials 1
Number of levels 1
Number of jumper slots 2
Connection 1
Connection technology Push-in CAGE CLAMP®
Actuation type Operating tool
Connectable conductor materials Copper
Nominal cross-section 6 mm²
Solid conductor 0,5 … 10 mm² / 20 … 8 AWG
Solid conductor; push-in termination 2,5 … 10 mm² / 14 … 8 AWG
Fine-stranded conductor 0,5 … 10 mm² / 20 … 8 AWG
Fine-stranded conductor; with insulated ferrule 0,5 … 6 mm² / 20 … 10 AWG
Fine-stranded conductor; with ferrule; push-in termination 2,5 … 6 mm² / 16 … 10 AWG
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length 13 … 15 mm / 0.51 … 0.59 inci
Wiring direction Front-entry wiring
