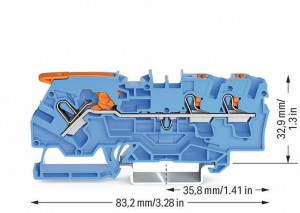

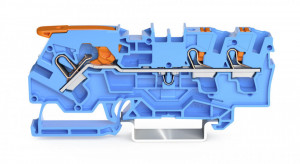

Clema sir WAGO, cu 3 conductori,4mm², albastru -TOPJOB 2104-5304
12,20 RON
(TVA inclus)
Costurile de livrare nu sunt incluse.
Cum te putem ajuta?
Descriere
| Ratings per | IEC/EN 60947-7-1 |
| Nominal voltage (III/3) | 800V |
| Rated impulse voltage (III/3) | 8kV |
| Rated current | 32A |
| Legend (ratings) | (III / 3) Overvoltage category III / Pollution degree 3 |
Ratings per IEC/EN 2
| Rated current 2 | 40A |
Ratings per UL
| Approvals per | UL 1059 |
| Rated voltage UL (Use Group B) | 600V |
| Rated current UL (Use Group B) | 30A |
| Rated voltage UL (Use Group C) | 600V |
| Rated current UL (Use Group C) | 30A |
Ratings per CSA
| Approvals per | CSA 22.2 No 158 |
| Rated voltage CSA (Use Group B) | 600V |
| Rated current CSA (Use Group B) | 30A |
| Rated voltage CSA (Use Group C) | 600V |
| Rated current CSA (Use Group C) | 30A |
Ex information
| Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
| Ratings per | ATEX: PTB 20 ATEX 1006 U / IECEx: PTB 20.0012U (Ex eb IIC Gb) |
| Rated voltage EN (Ex e II) | 550V |
| Rated current (Ex e II) | 28A |
Power loss
| Power loss, per pole (potential) | 1,362W |
| Rated current IN for specified power loss | 32A |
| Resistance value for specified, current-dependent power loss | 0,001Ω |
Connection 1
| Connection technology | Push-in CAGE CLAMP® |
| Actuation type | Lever |
| Connectable conductor materials | Copper |
| Nominal cross-section | 4 mm² |
| Solid conductor | 0,5 … 6 mm² / 20 … 10 AWG |
| Solid conductor; push-in termination | 1,5 … 6 mm² / 14 … 10 AWG |
| Fine-stranded conductor | 0,5 … 6 mm² / 20 … 10 AWG |
| Fine-stranded conductor; with insulated ferrule | 0,5 … 4 mm² / 20 … 12 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 1,5 … 4 mm² / 18 … 12 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 11 … 13 mm / 0.43 … 0.51 inci |
| Wiring direction | Front-entry wiring |
Connection 2
| Actuation type 2 | Push-button |
